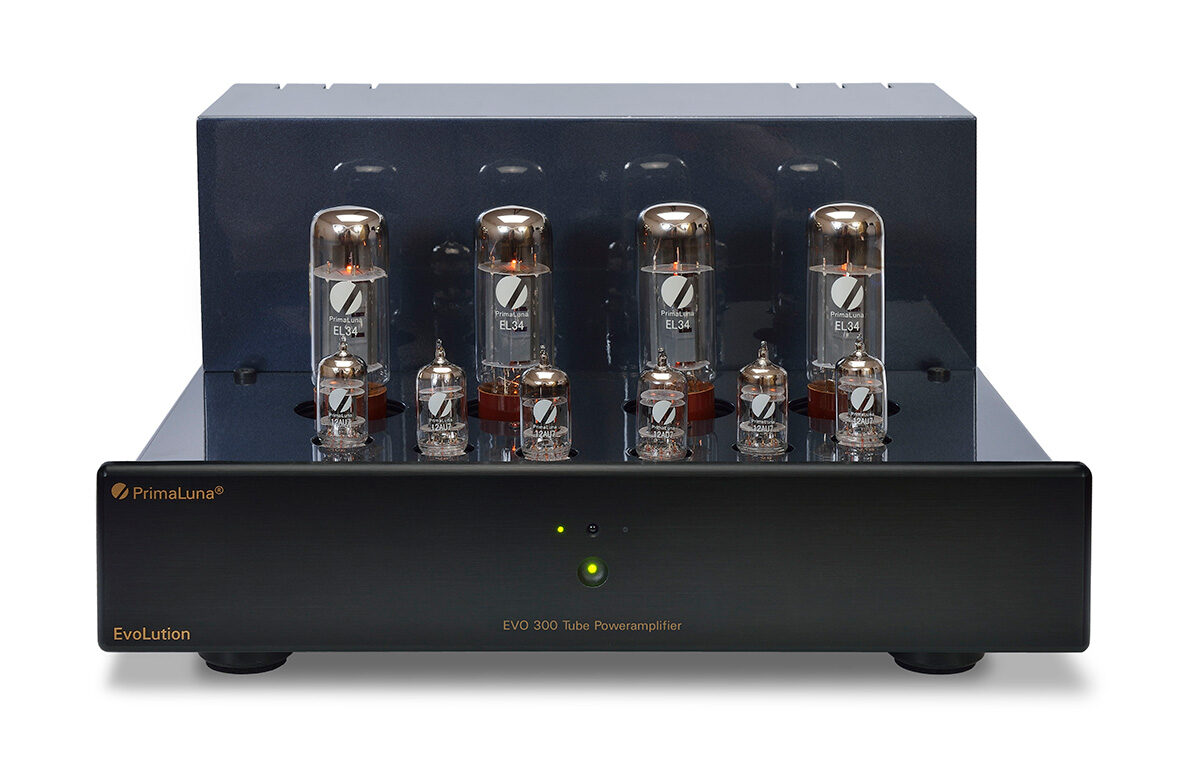

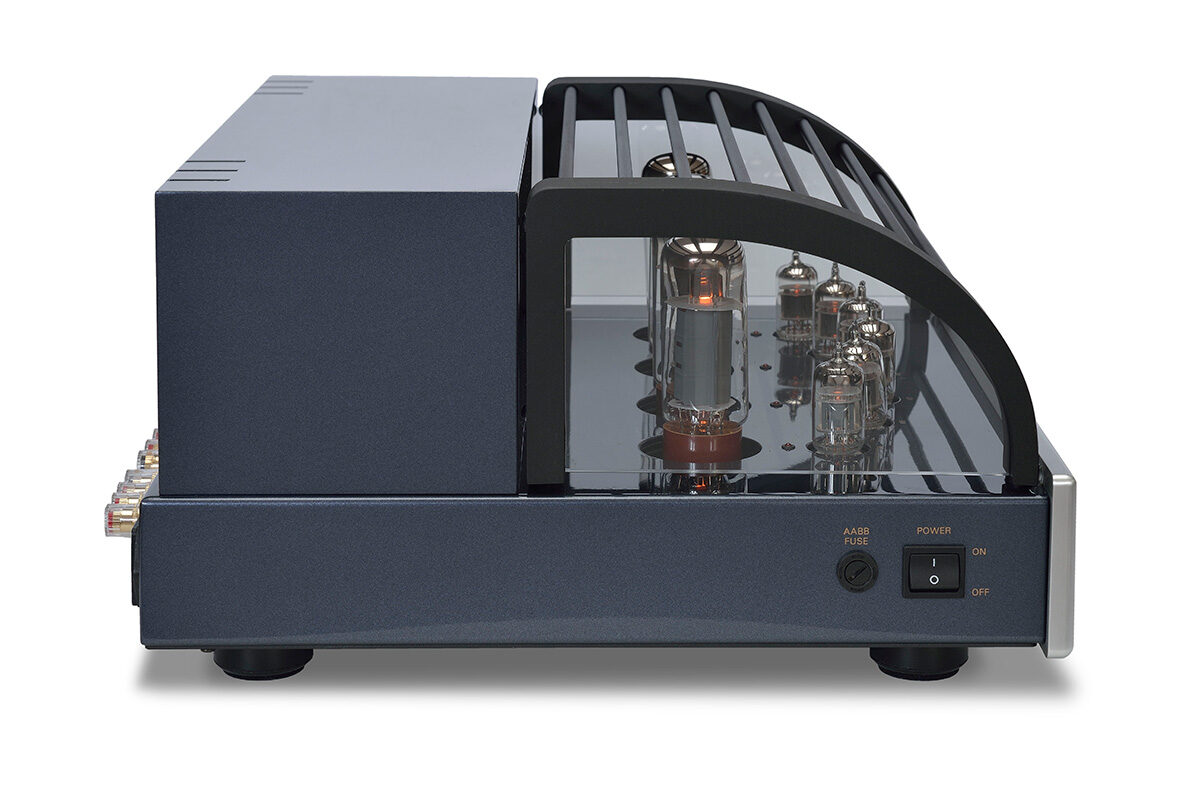

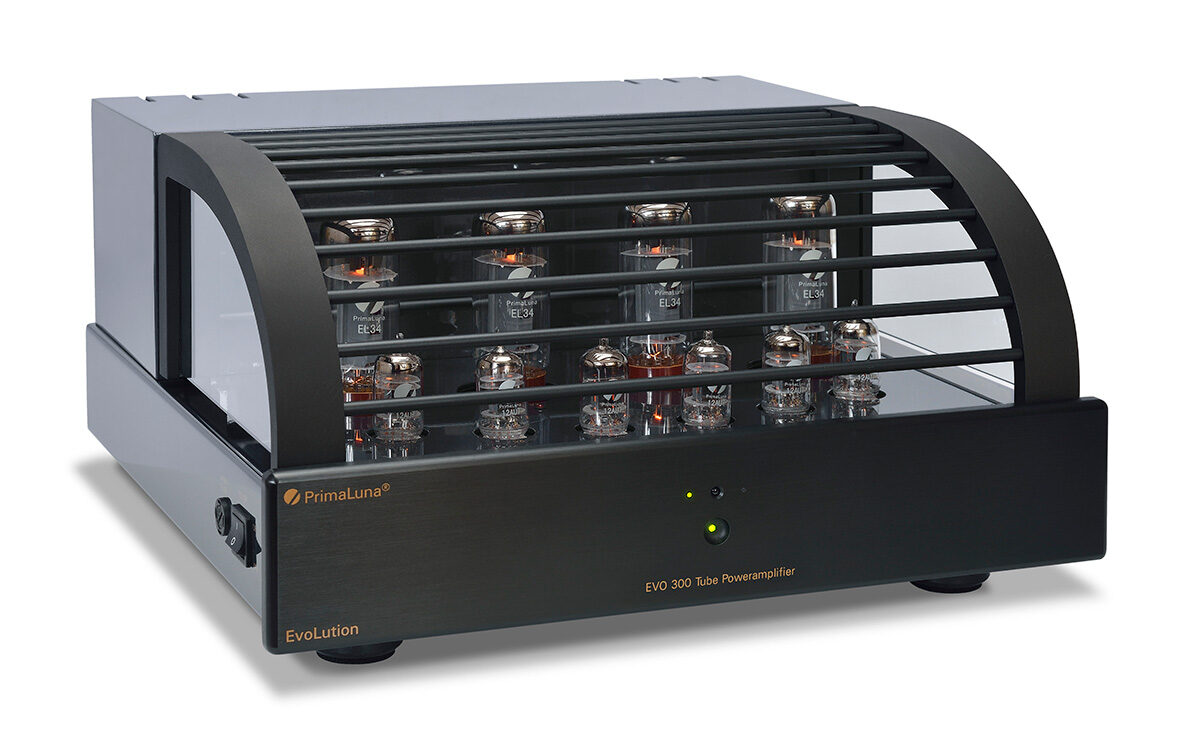

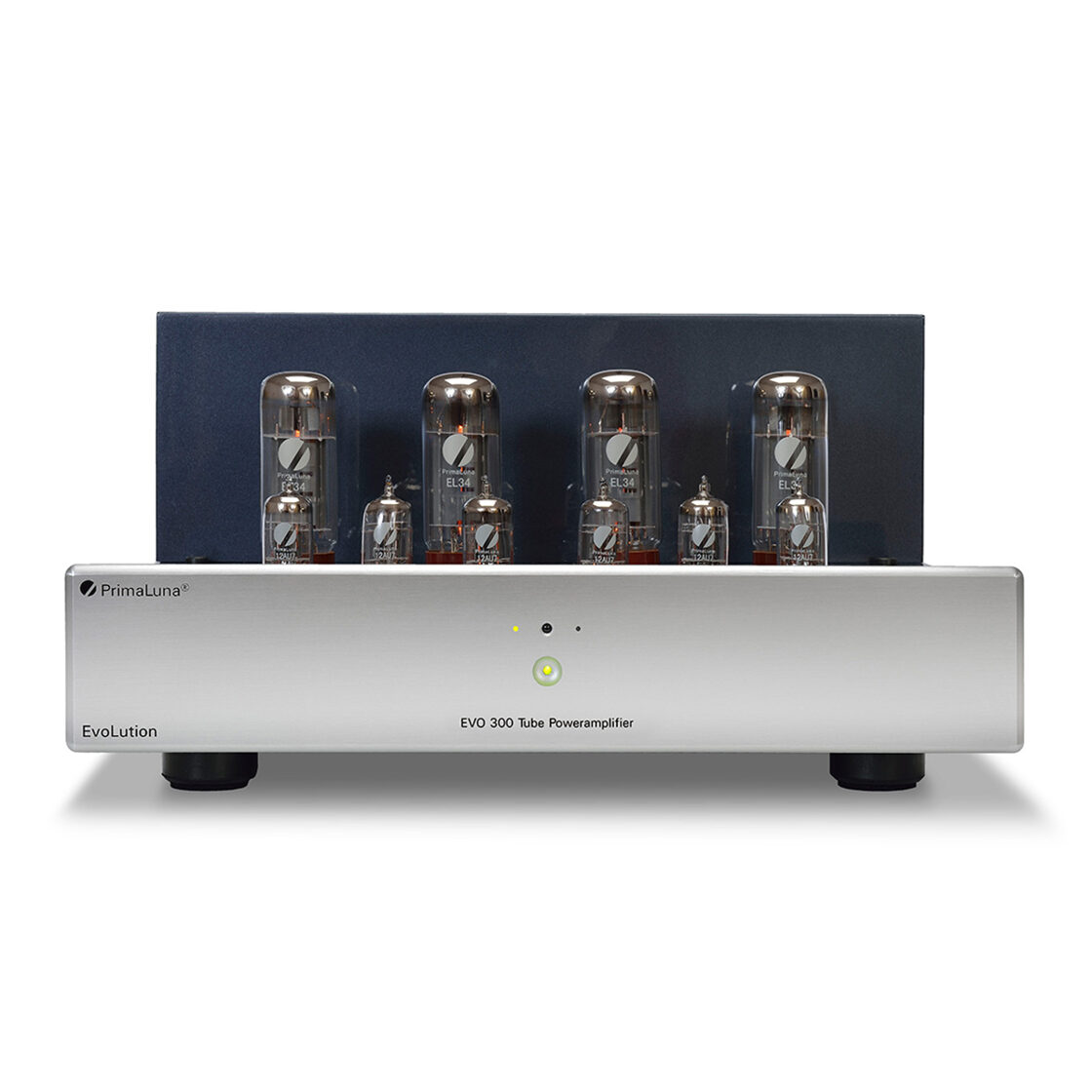

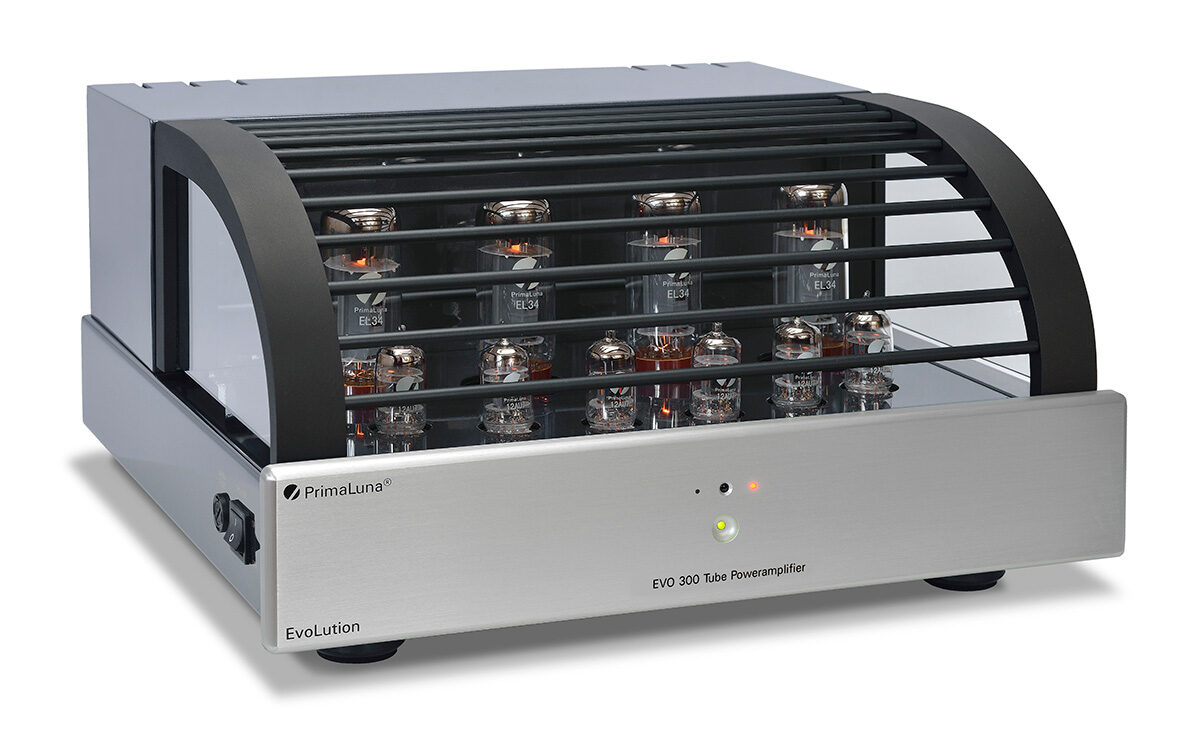

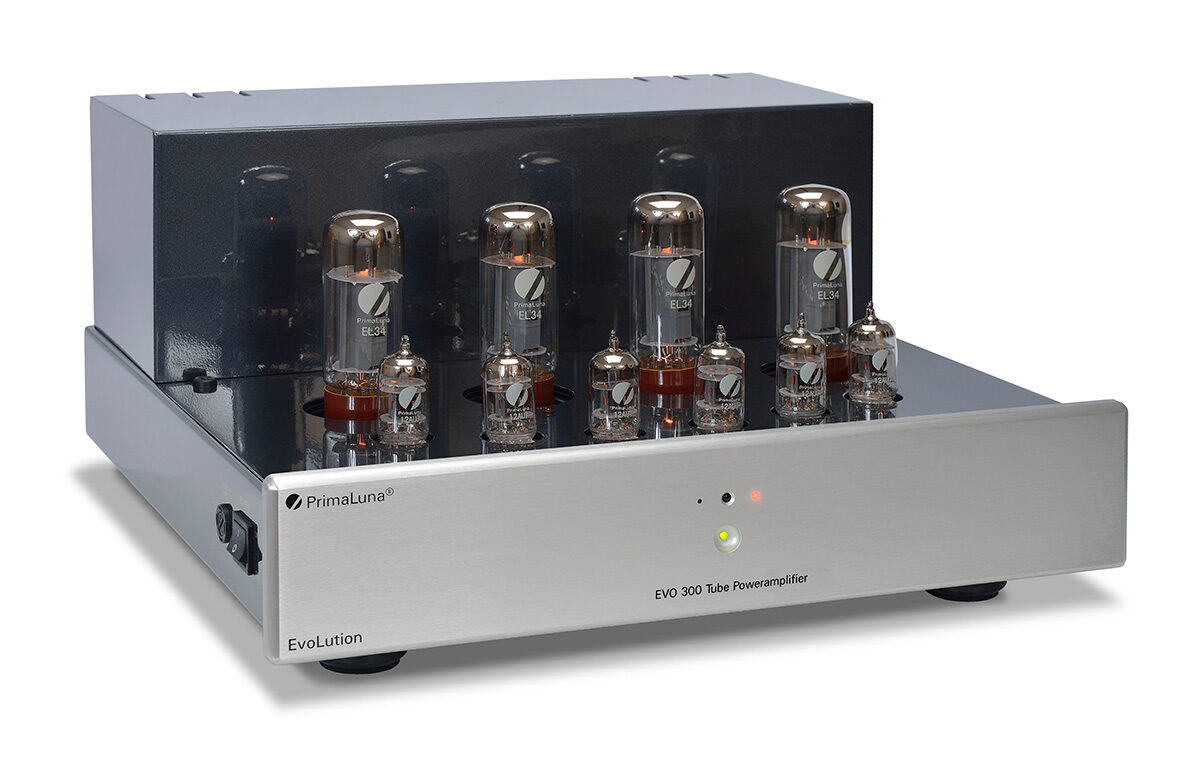

PrimaLuna EVO 300 Tube Poweramplifier

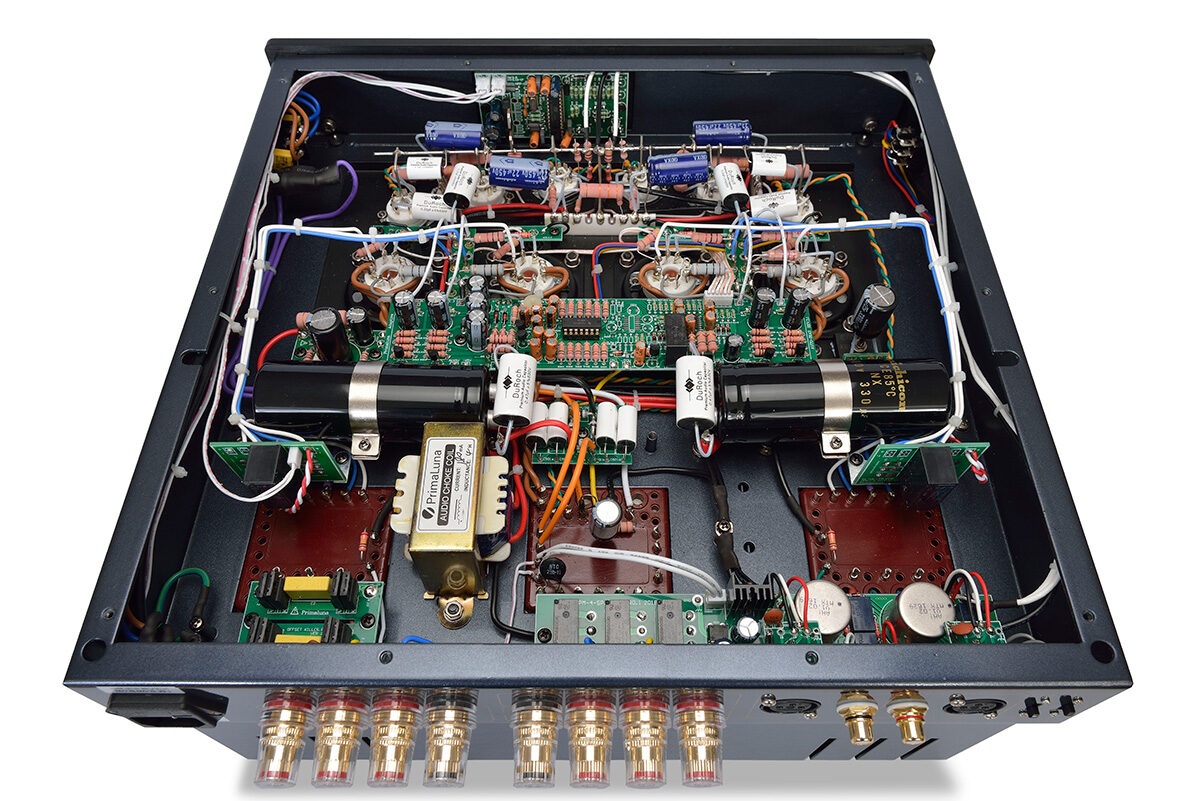

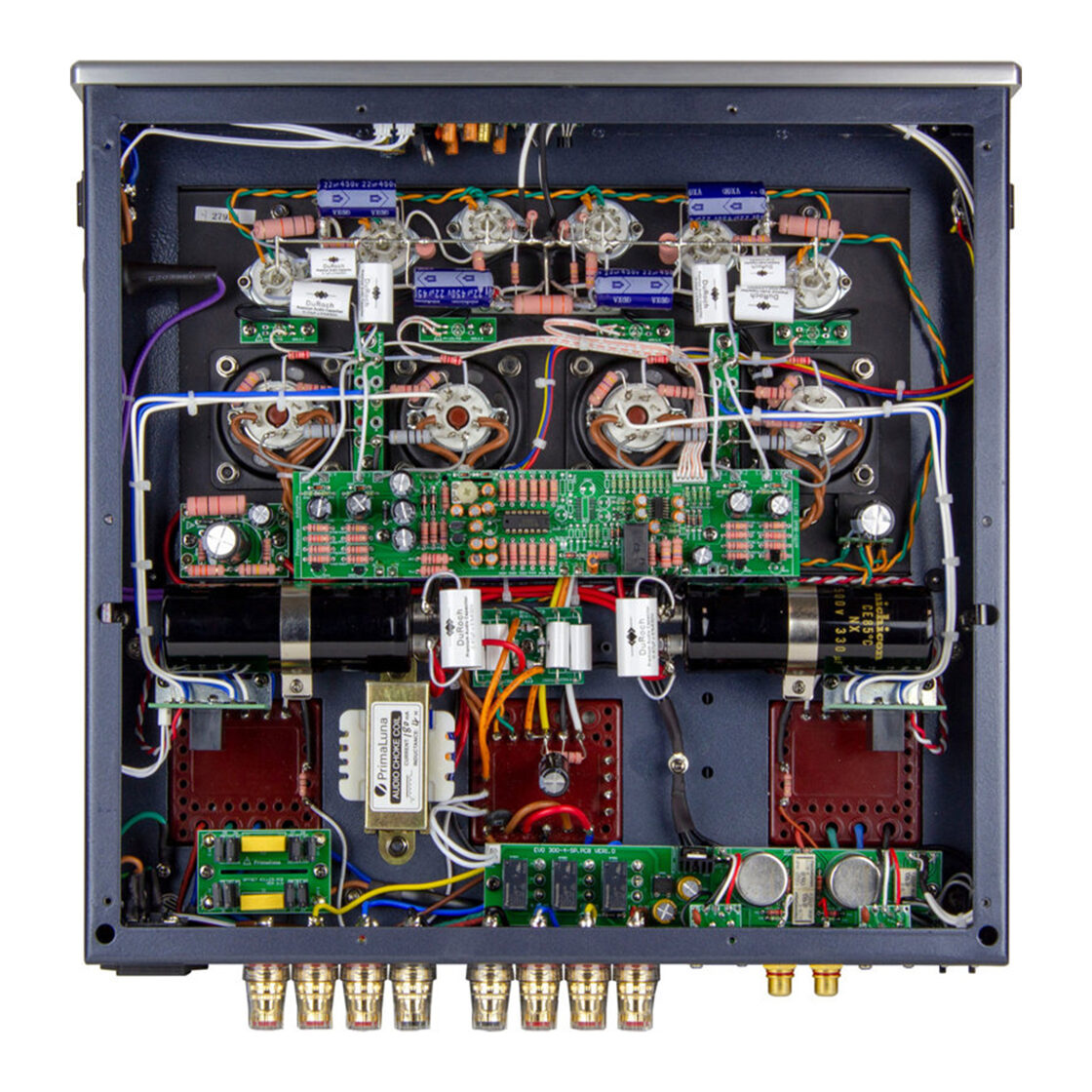

PrimaLuna products please the senses long before you plug them in. All models feature handmade construction, and the heavy-gauge, fully vented steel chassis has a five-coat finish, each coat hand-rubbed and polished. Inside, you will find point-to-point wiring with only the best Swiss silver wires – a level of detail that is usually only available (and not always!) in the most expensive tube equipment.There are no cheap plastic remotes here. PrimaLuna uses heavy metal remotes that are substantial, yet still elegant and ergonomic.
Talking about heavy metal, try lifting a PrimaLuna to see just how much we put into them. All PrimaLuna models feature custom-designed toroidal and EI-frame transformers, made to the exacting spec of one of the most prestigious transformer designers in the US. Each transformer is fully encapsulated for the lowest hum and best isolation, and offers huge output bandwidth and speaker control. There is no cheap or lightweight way to do this, and this is why PrimaLuna is famous for combining the midrange magic of tubes with sparkling highs and deep, solid bass.
| Specifications | Model EVO 300-4 for EL34 / KT88 |
| Power Ultra-Linear | 44 / 43 Watts Stereo per channel; 85 / 84 Watts Mono |
| Power Triode | 22 / 25 Watts Stereo per channel; 45 / 50 Watts Mono |
| Frequency Response | 10 Hz – 70 kHz +/- 1 dB 8 Hz – 75 kHz +/- 3 dB |
| THD with AABB | < 0.1% @ 1W; less than 2% at rated power / < 0.17% @ 1W |
| S/N Ratio | 91 dB (105 dB A Weighted) |
| Input Impedance | 100 kOhm |
| Input Sensitivity | 870 / 880 mV for rated power at maximum volume |
| Maximum Gain | 26 dB / 29 dB |
| Power Consumption | 300 Watts |
| Weight | Net weight: 66 lbs / 30 kg Shipping Weight: 77 lbs / 35 kg |
| Dimensions | 15.9" x 15.2" x 8.1" / 405 x 385 x 205 mm (L x W x H) |
| Shipping Dimensions | 22.7" x 18.4" x 12.4" / 577 x 468 x 315 mm (L x W x H) |

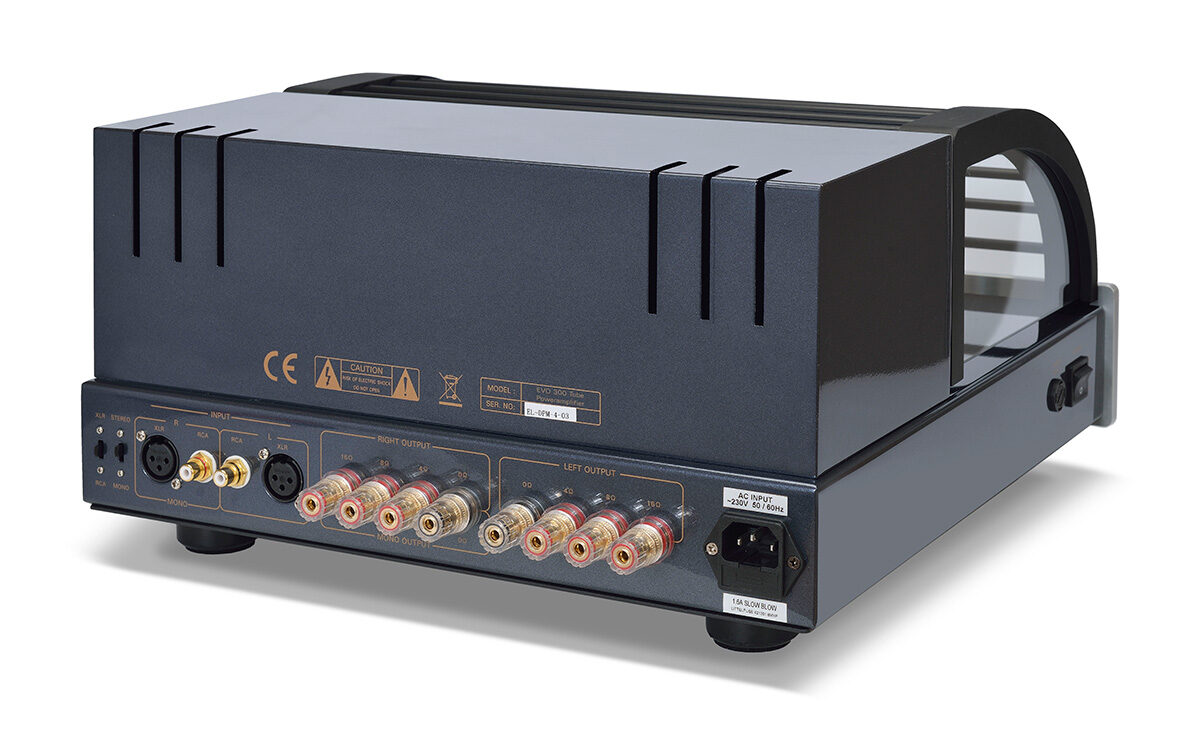

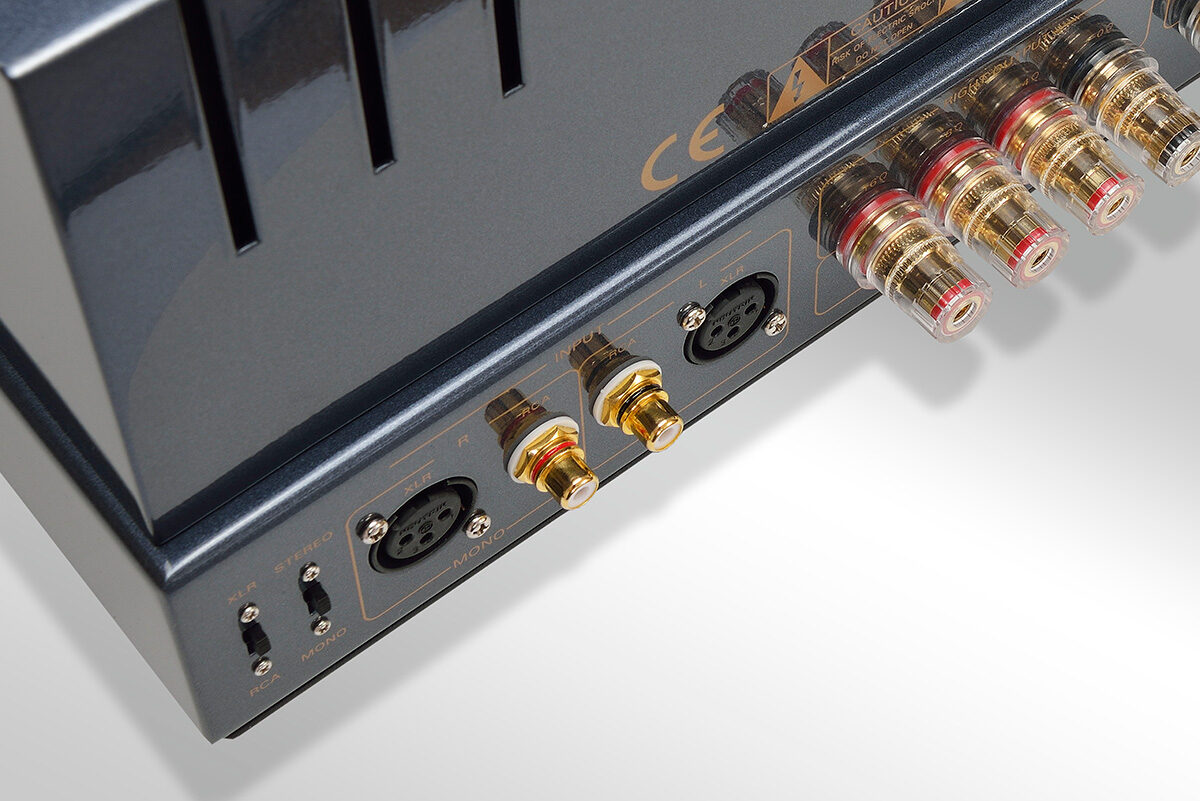

| Inputs | 1 pair Stereo RCA & XLR, 1 piece Mono RCA & XLR |
| Outputs | 4, 8 & 16 / 2, 4 & 8 Ohm Speaker Taps |

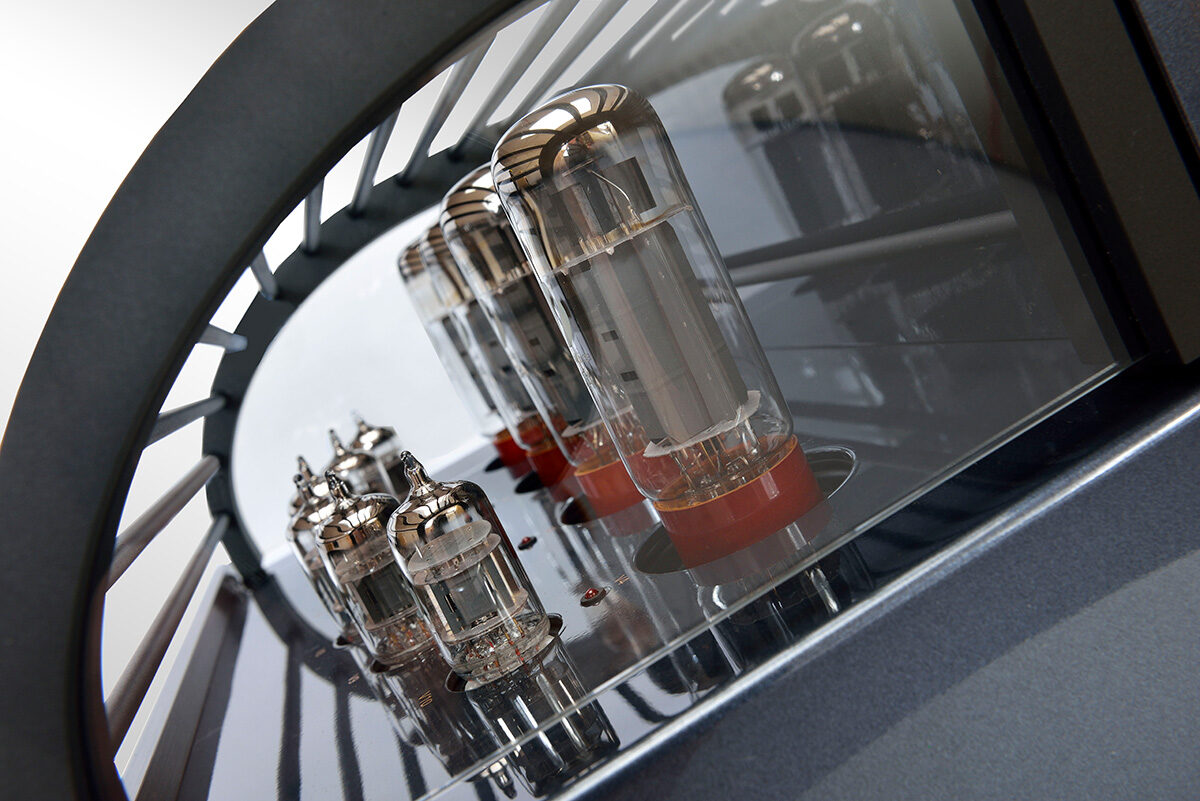

| Tube Complement | 4 x EL34, 6 x 12AU7 |
| Damping Coefficient | 4 KD (1 kHz) |
| Remote Control | Slim |
